SMC電磁閥VT307：
| 系列 | 流量特性 2→3 (A→R) C［dm3/（ s?bar）］ |
流量特性 2→3 (A→R) b |
流量特性 2→3 (A→R) Cv |
消耗功率（W） | 可真空使用 |
|---|---|---|---|---|---|
| VT307 | 0.71 | 0.25 | 0.17 |
4 (標(biāo)準(zhǔn)) 1.8 (低功率型) |
-101.2kPa |

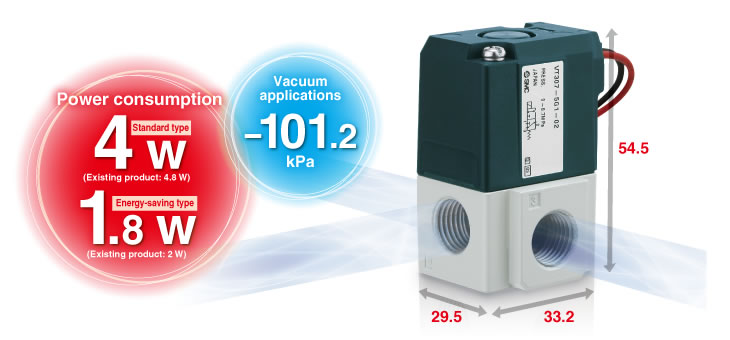

Standard type: 4W (Existing product: 4.8 W)
Energy-saving type: 1.8W (Existing product: 2 W)

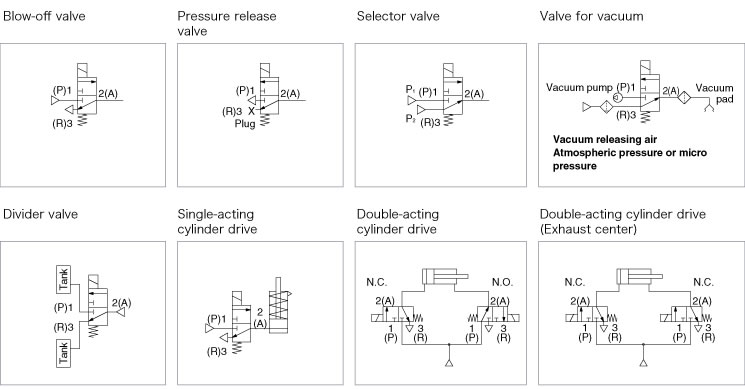

A single valve with various valve functions
(Universal porting type)
N.C. valve
N.O. valve
Divider valve
Selector valve
etc.
Low concentration ozone resistant
Rubber seal material: HNBR for main valve
Mounting dimensions are interchangeable with existing product

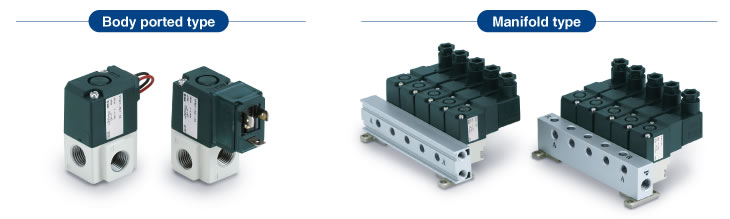

Body ported type and Manifold type are available.

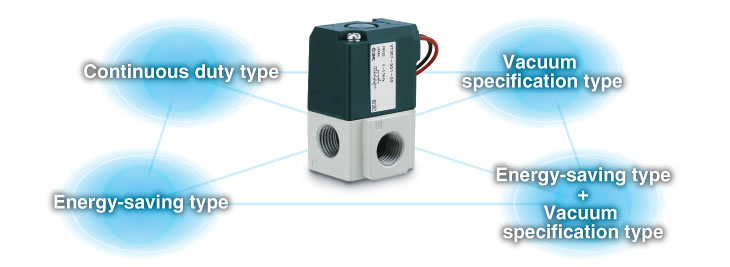

Continuous duty type, Energy-saving type, Vacuum specification type, Energy-saving type + Vacuum specification type
