SMC氣缸New CP96/CP96SDISO氣缸：

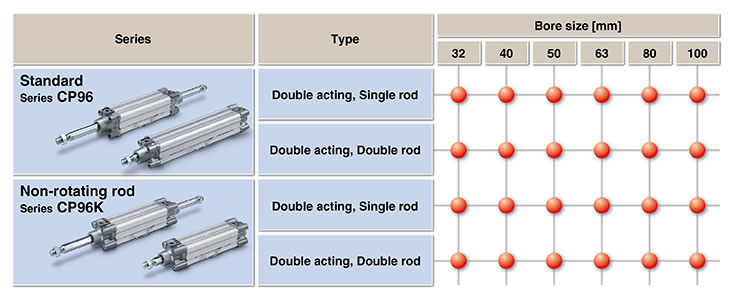

| 形式 | 系列 | 動作方式 | 缸筒內(nèi)徑（mm） |
|---|---|---|---|
| 標準型 | CP96 |
單桿雙作用 雙桿雙作用 |
32，40，50，63，80，100 |
| 桿不回轉型 | CP96K |
單桿雙作用 雙桿雙作用 |
32，40，50，63，80，100 |

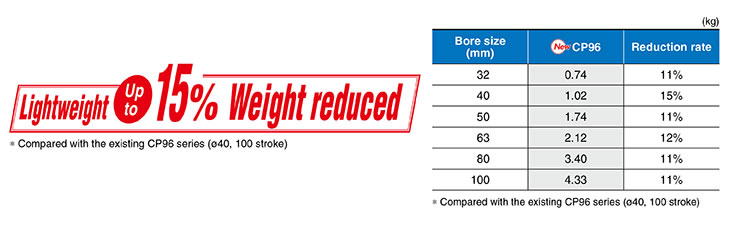

Achieved weight reduction by changing rod cover shape and piston structure

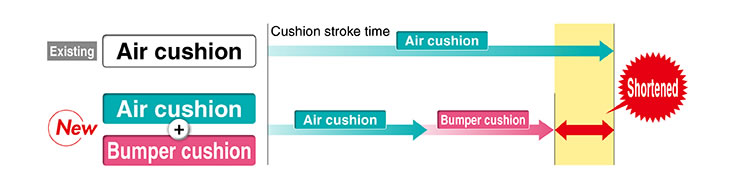

By adopting a new cushion method (Air cushion + Bumper cushion), Cycle time shortened
Air cushion + Bumper cushion Combined structure
● Standard type, Double rod: Series CP96-W
● Non-rotating rod type,
Single rod: Series CP96K
Double rod: Series CP96K-W
● Heat resistant cylinder (-XB6)
● Heavy duty scraper (-XC4)
● Coil scraper (-XC35) etc. are added.

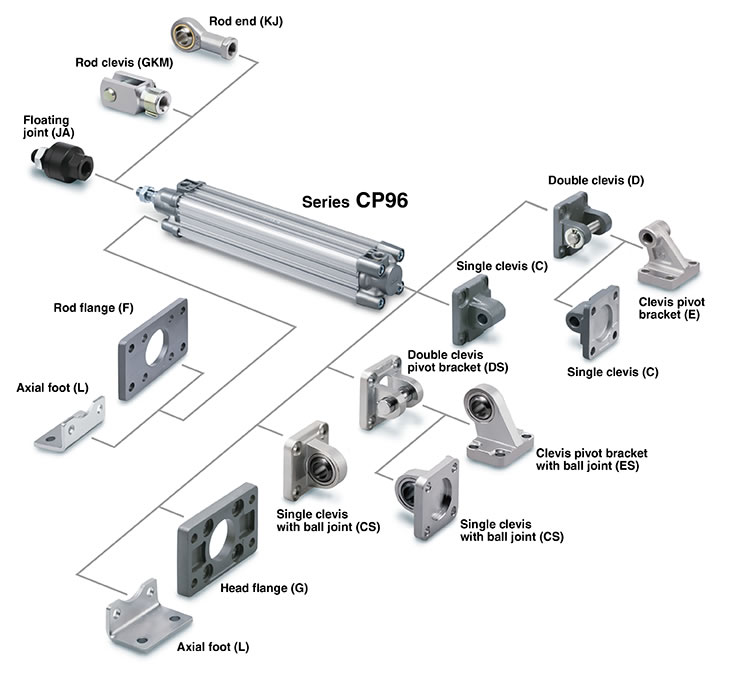

Mounting brackets can be combined according to the operating conditions.
